小型前移叉车AGV

小型前移叉车AGV
  • 产品名称:小型前移叉车AGV
  • 品牌:EFORK
  • 产品型号:CQD-AJ
产品说明:
Product Description
1.CURTIS柯蒂斯电控,控制器多重自动保护系统;
2.EPS转向能耗降低~ 20%,大大提升作业精准度,降低了驾驶员疲劳度,大幅提升生产力;
3.适用多种托盘,具有门门架整体前移的特点,转弯半径小,可忽略货架底层的障碍;
4.货叉在将至离地面10cm时下降速度自动减慢;
5.紧凑而强劲的交流驱动马达无需复杂的加速操作即可实现平稳启动。省去碳刷和接触器,大大降低维护成本;
Product advantages:
1. Curtis Curtis electric control, controller multiple automatic protection system
2. EPS steering energy consumption reduced ~ 20%, accurate operation, reduced driver fatigue, greatly improved productivity
3. It is suitable for a variety of pallets. It has the characteristics of moving the door frame forward as a whole. The turning radius is small, and the obstacles at the bottom of the shelf can be ignored
4. When the fork is about to reach 10 cm above the ground, the descending speed will automatically slow down
5. Compact and powerful AC drive motor can start smoothly without complicated acceleration operation. Save carbon brush and contactor, greatly reduce maintenance cost

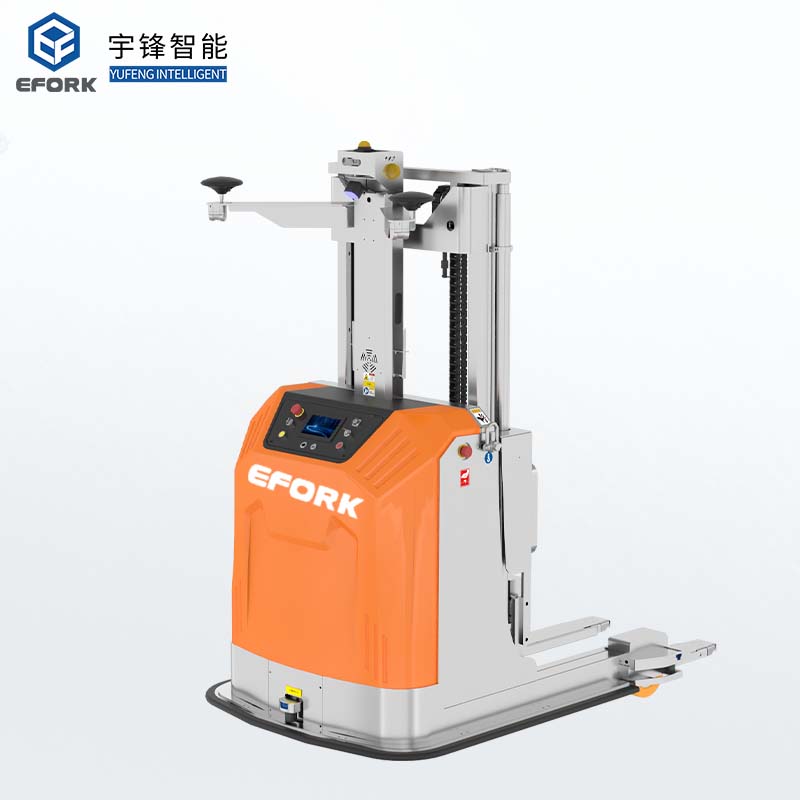

产品图片
Product Picture

产品参数:
Product Data
CQD*AJ01-16
基本参数
(Basic parameters)
外观尺寸(含货叉)
(Dimension (including fork))
mm L2270*W1098*H2350
自重(self weight) kg 3000
导航方式(Navigation mode) 激光导航(Laser navigation)
控制方式(control mode) 宇锋智能运动控制系统
( intelligent motion control system)
抬升高度(Lift height) mm 1600
额定载重(Rated load) kg 1000~2000
载荷中心(Load center) mm 500
运动性能
(Sports performance)
运行速度(Running speed) m/min 40
工作环境温度
(Operating temperature)
-10℃-40℃
朝向精度(Orientation accuracy) mm ±10mm
停止精度(Accuracy of stop) mm ±20mm
(更高精度需二次定位)
(Secondary positioning is needed for higher accuracy)
行驶方向(Direction of travel) 双向(two-way)
前移距离(Reach distance) mm 500/600/730
提升速度(实载/空载)
(Lifting speed (loaded / unloaded))
mm/s 100/110
下降速度(实载/空载)
(Descent speed (loaded / unloaded))
mm/s 120/140
最小转弯半径(不含Ast)
(Minimum turning radius (excluding AST))
mm 1750
堆垛通道(1200进叉*1000)
(Stacking channel (1200 fork * 1000))
mm 3000(含Ast)(Contain Ast)
锂电池性能
(Performance of lithium battery)
额定电压(Rated voltage) V 24
电容(electric capacity) Ah 160(可定制)(Customizable)
充放电循环次数
(Number of charge discharge cycles)
1500
续航时间(Endurance time) h 运行约8小时
(It runs for about 8 hours)
充电时间(Charging time) h 1-2
安全防护
(safety protection)
激光避障(Laser obstacle avoidance) 具备(YES)
托盘到位检查(Pallet in place inspection) 具备(YES)
叉齿红外传感器检查
(Inspection of fork tooth infrared sensor)
具备(YES)
急停按钮(Emergency stop button) 具备(YES)
声光报警(Sound and light alarm) 具备(YES)
机械防撞(Mechanical collision avoidance) 具备(YES)
