平衡重叉车AGV

平衡重叉车AGV
  • 产品名称:平衡重叉车AGV
  • 品牌:EFORK
  • 产品型号:CDD-BJ
产品说明:
Product Description
1.激光导航,定位精度高,即使是无光环境也能精准定位;
2.载重大,额定载重可达3000KG,适用于各大场地面积受限的厂房和车间;
3.车体及导航系统可定制,满足各类使用情景。
1. Laser navigation, high positioning accuracy, even in no light environment; forklift can also accurately locate;
2. With heavy load and rated load up to 3000kg, it is suitable for factories and workshops with limited site area;
3. The vehicle body and navigation system can be customized to meet various use scenarios.

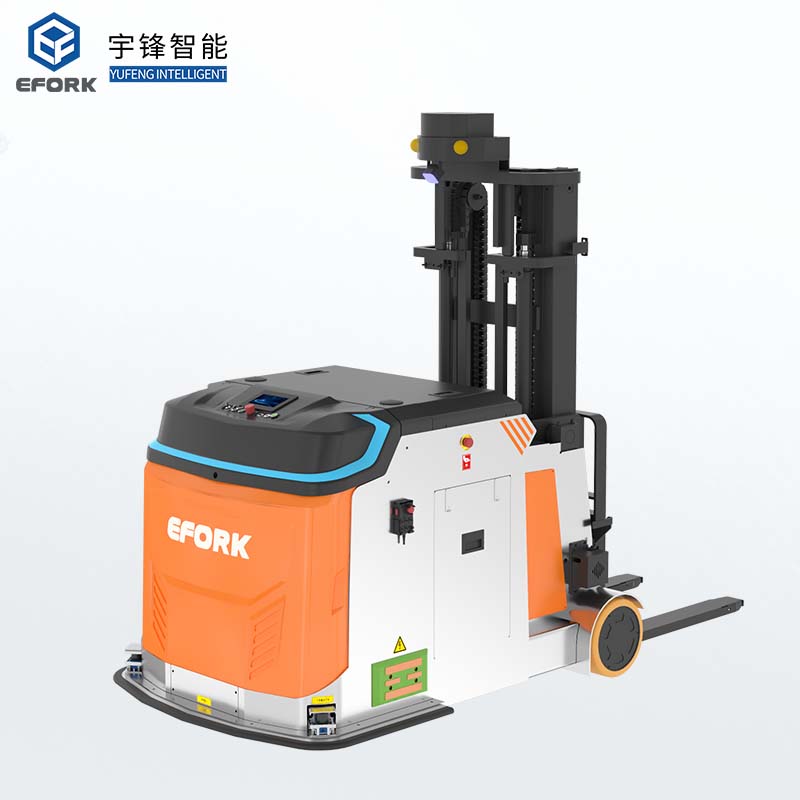

产品图片
Product Picture

产品参数:
Product Data
CDD*BJ01-30

(Basic parameters)
外观尺寸(含货叉)
(Dimension (including fork))
mm L3295*W1244*H2250
自重(self weight) kg /
导航方式(Navigation mode) 激光导航(Laser navigation)
控制方式(control mode) 宇锋智能运动控制系统
( intelligent motion control system)
起升高度(Lift height) mm 3000
额定载重(Rated load) kg 1000~3000
载荷中心(Load center) mm 500
运动性能
(Sports performance)
运行速度(Running speed) m/min 50
工作环境温度
(Operating temperature)
-10℃-40℃
朝向精度(Orientation accuracy) mm ±10mm
停止精度(Accuracy of stop) mm ±20mm
(更高精度需二次定位)
(Secondary positioning is needed for higher accuracy)
行驶方向(Direction of travel) 双向
提升速度(实载/空载)
(Lifting speed (loaded / unloaded))
mm/s -
下降速度(实载/空载)
(Descent speed (loaded / unloaded))
mm/s -
最小转弯半径(不含Ast)
(Minimum turning radius (excluding AST))
mm 2100
堆垛通道(1200进叉*1000)
(Stacking channel (1200 fork * 1000))
mm 3850(含Ast)(Contain Ast)
锂电池性能
(Performance of lithium battery)
额定电压(Rated voltage) V 48
电容(electric capacity) Ah 300(可定制) (Customizable)
充放电循环次数
(Number of charge discharge cycles)
1500
续航时间(Endurance time) h 运行约8小时
(It runs for about 8 hours)
充电时间(Charging time) h 1-2
安全防护
(safety protection)
激光避障(Laser obstacle avoidance) 具备(YES)
托盘到位检查(Pallet in place inspection) 具备(YES)
叉齿红外传感器检查
(Inspection of fork tooth infrared sensor)
具备(YES)
急停按钮(Emergency stop button) 具备(YES)
声光报警(Sound and light alarm) 具备(YES)
机械防撞(Mechanical collision avoidance) 具备(YES)
产品视频:
Product Video
详情优势:
Product Advantage
